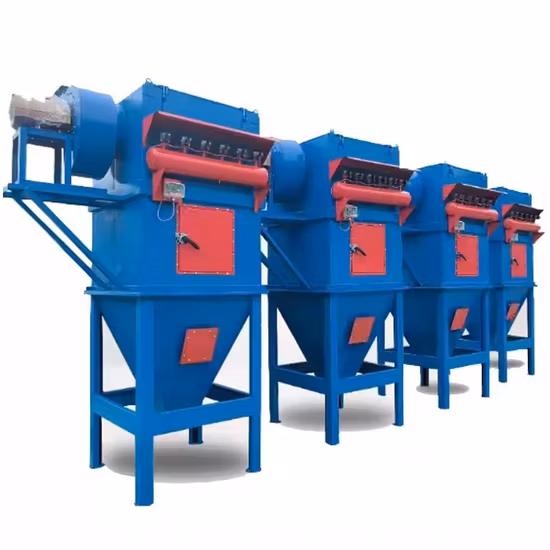

Insert Pulse Jet Flat Bag Filter Insertable Dust Collector

Basic Info

Model NO.	DLMV80/20
Specification	Others
Trademark	SHOU ZHI
Origin	China

Product Description

Introduction:
The Dalamatic Insertable (DLMV) is a versatile collector that can be inserted into various applications, such as bins, silos, bunkers, storage vessels or transfer points.

Equipment Type	Bag Frame Qty	Bag Length(m)	Filter Area(m2)	Compressed air consumption(m3/h)	Compressed air pressure(MPa)	Air Flow(m3/h)	Rated Power(KW)	Equipment Weight (KG)
DLMV 6/10	6	1.0	6	2.4	0.38	600 - 800	1.5	280.5
DLMV 10/10	10	1.0	10	4.0	0.38	900 - 1100	1.5	391
DLMV 15/15	10	1.5	15	4.8	0.38	1300 - 1700	2.2	411
DLMV 20/10	20	1.0	20	8.7	0.38	1800 - 2200	3.0	494
DLMV 30/15	20	1.5	30	8.7	0.38	2700 - 3300	3.0	534
DLMV 38/12	30	1.25	38	11.2	0.45	3400 - 4200	5.5	745
DLMV 45/15	30	1.5	45	11.2	0.45	4000 - 5000	5.5	775
DLMV 60/15	40	1.5	60	16.1	0.45	5400 - 7000	7.5	942
DLMV 80/20	40	2.0	80	16.1	0.45	7200 - 9300	11.0	1054

Handling Material:
Products are widely used in various industries.Food industry: grain, tobacco;Chemical industry: fine chemicals, fertilizer, spray drying, casting;Building industry: glass, glass fiber, cement, ceramics;Metallurgical industry: iron and steel, aluminum;Other industries: electronics, power, ports, pharmaceuticals, tires, etc.

Product Features:
-- Continuous collectionProvides continuous filtration of high dust concentrations at high filtration velocities and constant levels of resistance in almost any industry and application.-- Compact designUnique modular design allows for installation in the most space restricted areas. Envelope-shaped bags maximize the amount of mediain a given space and allow for increased space between bags, minimizing the chances of bridging.-- Fewer bag changes Proven envelope-shaped bags are scrim-support-ed singed polyester, promoting longer bag life.-- Versatility A full range of sizes and types of bags are available for a wide variety of dust collection applications.
